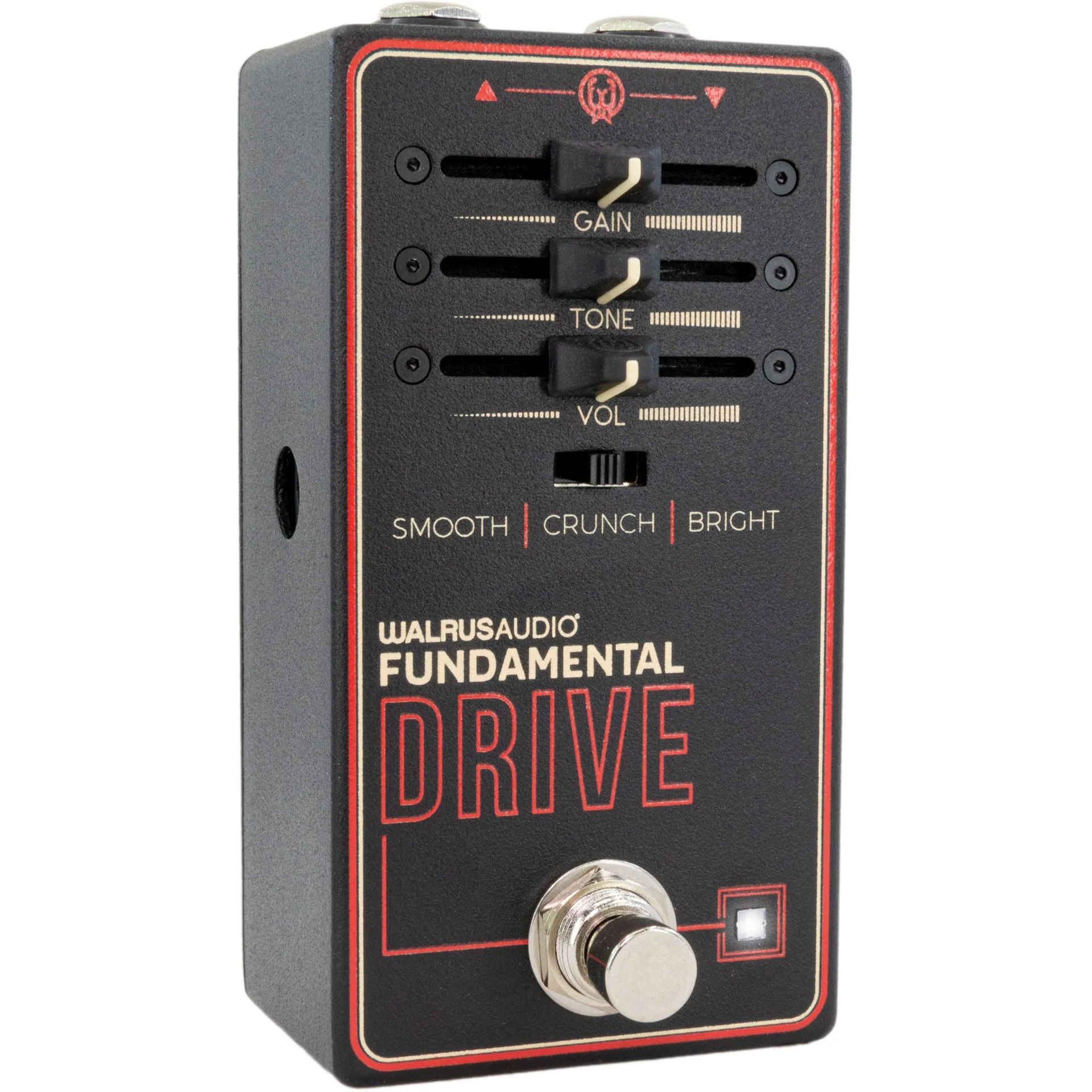

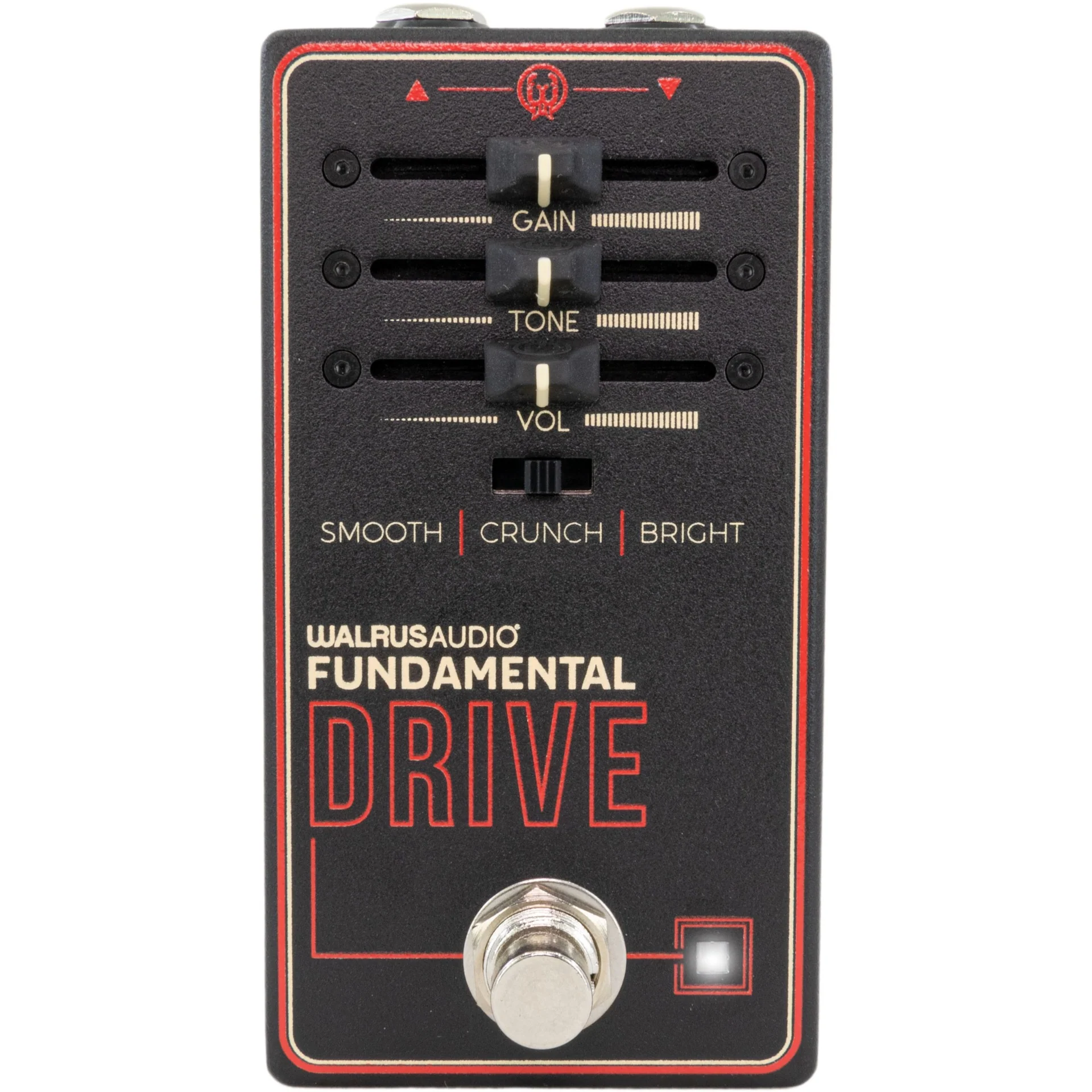

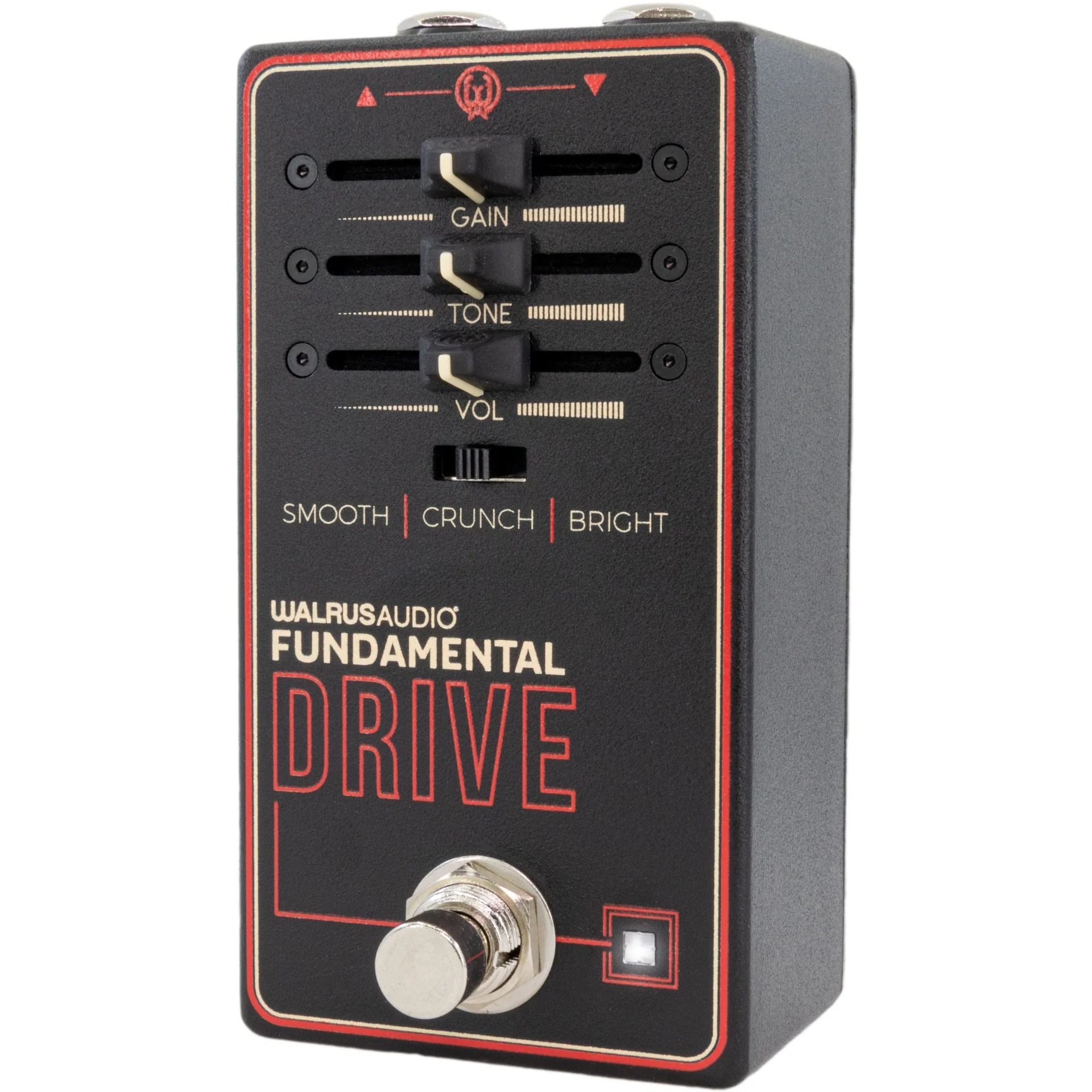

The Fundamental Drive is a versatile overdrive that allows for a wide range of tones thanks to its 3-mode switch. This is the perfect tool at the front of your chain to set the tone for your whole rig.

Gain – The Gain slider sets the amount of gain applied to your guitar signal passing through the overdrive circuit.

Tone – The Tone slider controls the amount of high-frequency level reduction

Volume – The Volume slider sets the overall output volume of the pedal.

Slide Switch – The slide switch allows you to change between 3 distinct flavors of the pedal. Each position has different clipping modes or tone profiles.

• Smooth - A classic soft clipping silicon overdrive. Clean and smooth
• Crunch - Silicon soft clipping with added hard clipping silicon diodes and a slight low end boost. Crunchy and edgy
• Bright - Silicon soft and hard clipping from the Crunch mode with a pre-clipping low end cut. Bright and glassy

Bypass Switch – Turns the effect on and off.

Bypass LED - Illuminated when the effect is engaged.

Input Jack - 1/4 inch cable from instrument.

Output Jack - 1/4 inch cable to amplifier.

9v Jack – 9-volt DC, Center Negative, 100mA min.
