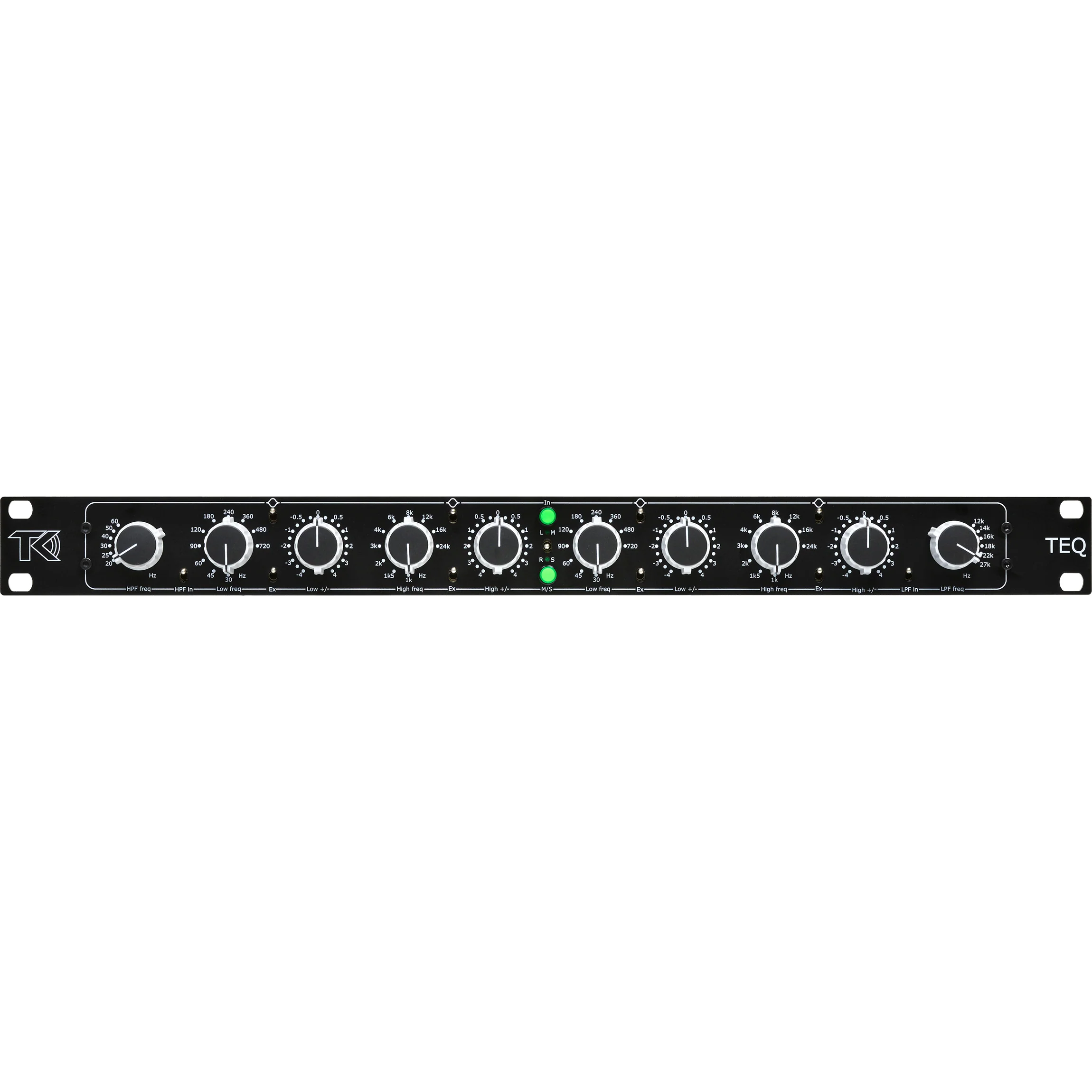

TK Audio TEQ - Two-Band Extended Dual Mono Baxandall Equalizer
The TK Audio TEQ is a dual-mono EQ based on the classic Baxandall circuit from the 1950s, loved by engineers for its smooth and natural sound.
With 21-position cut/boost switches, selectable peak/shelving, and 10 frequencies for each band, the TEQ allows the user to fine-tune the sound with cut/boost down to 0.25dB steps at the initial positions.
The cut/boost controls are provided with an extended range switch for a maximum range up to +/-8dB.
The HPF and LPF use 12dB filters with 6 frequencies each and common controls for left/right channels.
An M/S function is provided so that you can process Mid and Side with different EQ settings.
- Two bands with 10 frequencies each
- Peak/ Shelving select on each band
- Cut/boost with up to 0.25dB resolution
- Selectable extended cut/boost range up to +/-8dB
- HPF and LPF with 6 frequencies each
- M/S function
- Cue switch for monitoring of left/right or mid/side channels
