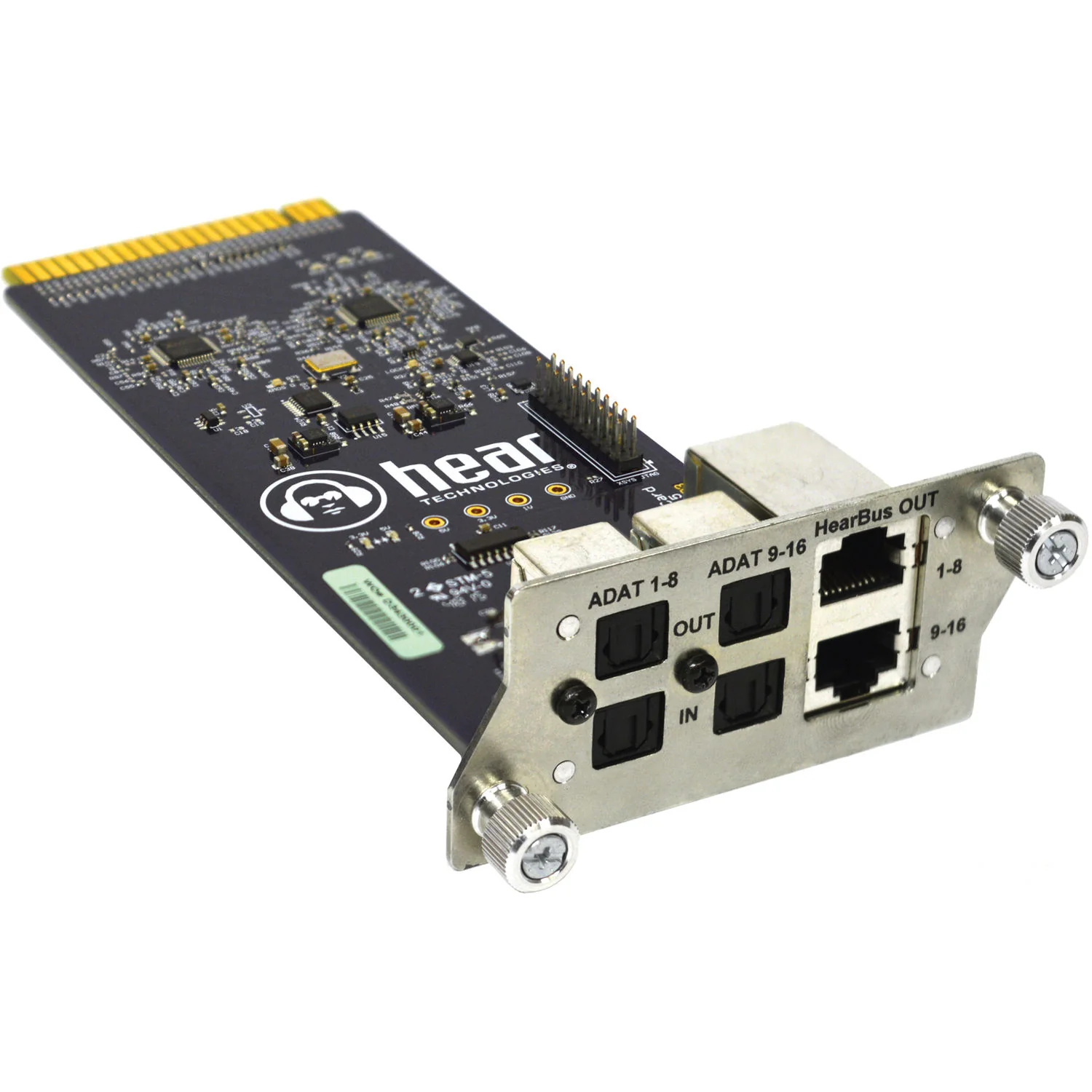

Modular card for 16 channels of ADAT in/out or HearBus out

• Simultaneously sends and receives 16 channels of digital audio
• Backwards compatible with the original 8-channel Hear Back system
• Two optical ADAT TOS-Link inputs, two optical ADAT TOS-Link outputs, and two RJ45 HearBus outputs (for connecting to the original Hear Back system)
• Supports and automatically locks on to sampling rates of 44.1 kHz and 48kHz
• Automatic sampling rate down-conversion is applied on the ADAT and HearBus outputs when the system is running at sampling rates over 48 kHz
• Two cards can be populated per Hub to allow A/B input switching between two banks of 16 channels
• Up to four cards can be populated to allow A/B input switching as well as a second set of dedicated ADAT outputs
